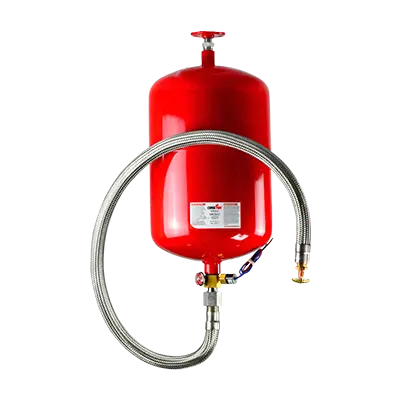

CFP 6750

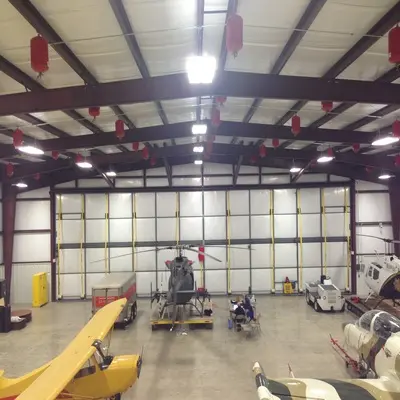

The CFP 6750 is the biggest of our Dry Chemical units. It is installed vertically and covers 15’x15’x30’ spaces per unit. Multiple units can be used together to protect even larger spaces such as warehouses, storage facilities, mining spaces, airplane hangars, large freezer buildings, and/or recycling facilities. Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.

This unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 155ºF (68ºC). The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.

Specifications:

Maximum Total Flood Volume:15'x15'x30' = 6750ft³ / 4.57mx4.57mx9.14m = 190.89m³
Reach Coverage Area: 15'x15' = 225ft² / 4.57mx4.57m = 20.88m²
Temperature Rating: -20°F to 120°F / -29°C to 49°C
Cylinder Manchester: 30# / Worthington 69#
Diameter: 12.25" / 31cm
Height: 19.56"+3.50 / Coupling Assembly: 50cm+8.90cm
Capacity 50lbs / 22.68kg
Unit Weight 81lbs / 36.74kg
Ship Weight 85lbs / 38.56kg
Approvals: UL, ULC, CSFM, NYC #5754
Propellant: High Purity Compressed Dry Nitrogen
Standard System Activation: 155° Fahrenheit / 68.3° Celsius

****Please contact us for SDS Sheets, Approvals and Documentation****

Contact Us For A Current Freight Quote On This Item

Shipping Options: ( Standard shipping runs 4- 5 weeks due to each unit is custom built per order)

RUSH Is 2-3 Weeks and Expedited RUSH at 1 Week Or Sooner - Please Contact Us For Pricing
